EVOLUTION OF THE MONTREAL METRO
Benoît Clairoux
Translated by Matthew McLauchlin

These eight maps, all different but not so far from one another, show how the various agencies responsible for planning the Montreal metro (the Tramway Company, the city of Montreal, the BTM, etc.) believed that the metro would develop.

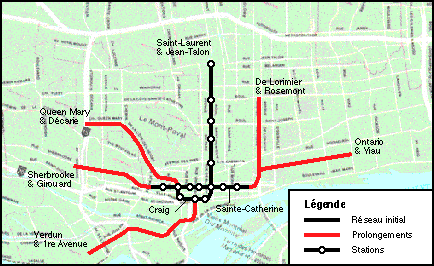

Figure 1: Network proposed by the Montreal Tramway Company in 1944

Figure 1

Source: Montreal Tramway Company, Rapport sur un projet de métropolitain pour Montréal, 1944.

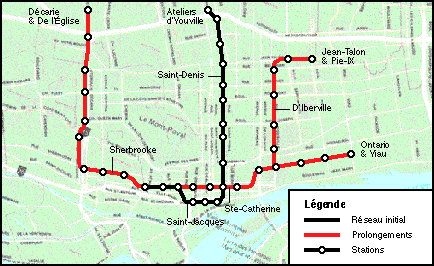

Figure 2: Network proposed by the Montreal Transit Commission in 1953

Figure 2

Source: Montreal Transit Commission, Un système de transport en commun rapide, 1953.

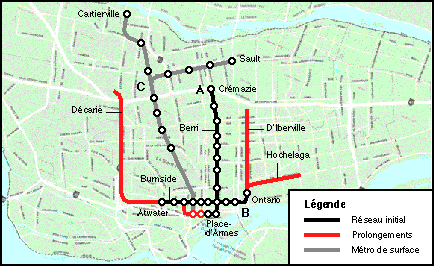

Figure 3: Draft project presented by the City of Montreal in October 1961

Figure 3

Source: La Presse, 17 October 1961.

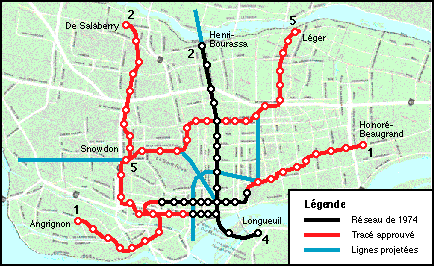

Figure 4: Expanded metro network proposed by the BTM in 1974

Figure 4

Source: Montreal Urban Community (Service de la planification du territoire), Le transport public: les prolongements, Montreal, February 1974.

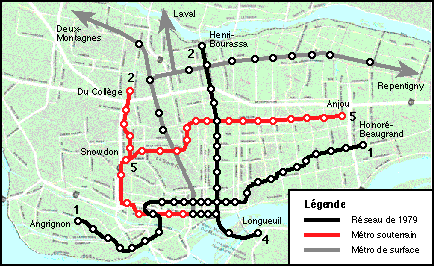

Figure 5: Metro network proposed by the Quebec Transport Ministry in 1979

Figure 5

Source: Quebec Transport Ministry, Plan de transport intégré de la région de Montréal, 1979, p. 16.

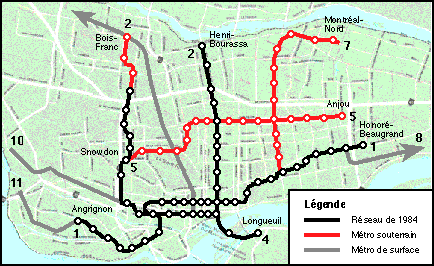

Figure 6: Metro network proposed by the BTM in 1984

Figure 6

Source: La Presse, 1 March 1984.

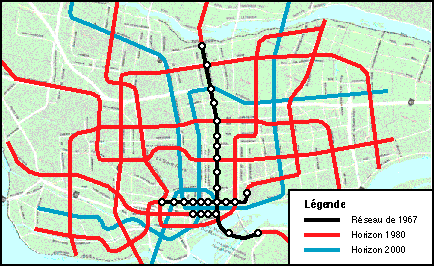

Figure 7: Metro network foreseen in 1967 for Montreal in 2000

Figure 7

Source: Jean Frébault and Jean Poulit, Le plan de transport de Montréal, Paris, ministère de l'Équipement et du Logement et ministère des Transports, 1967, p. 71.

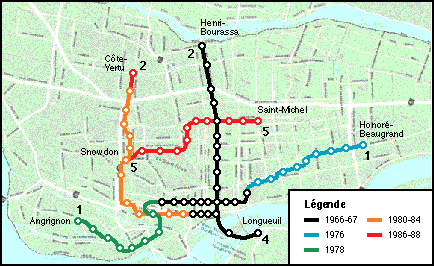

Figure 8: Current metro network, with opening dates for each section

Figure 8


Reproduced by kind permission of Benoît Clairoux.
